2012 Kurbelmodelle
2/22

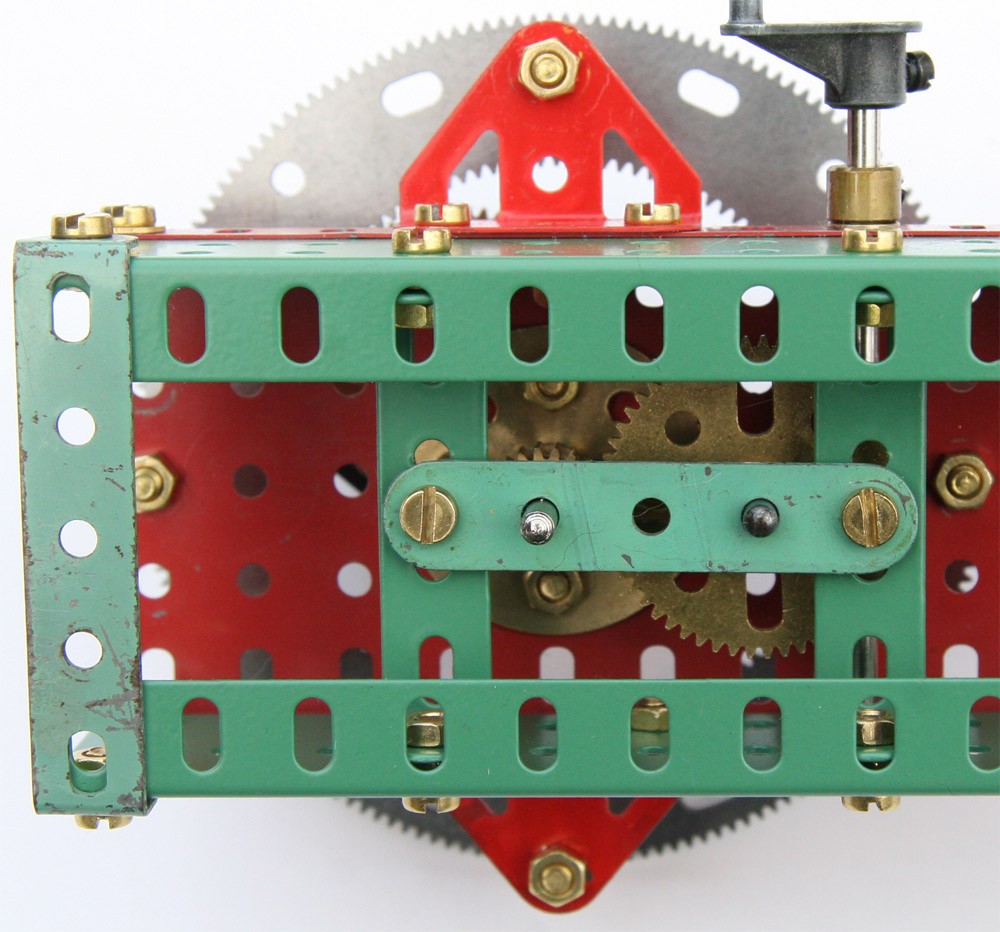

De La Hire I Geradführung 02.jpg
+
Der Antrieb des inneren Zahnrads erfolgt über eine Schnecke auf ein 19er Ritzel und von dort über eine 1:3 Übersetzung 57Z/19Z auf die Drehachse. Für einen Umlauf des inneren Zahnrads werden also 19/3 Kurbelumdrehungen benötigt.
